Medical ECG Machine 6 Channel ECG price
1-1000 Unit
$699.00
≥ 1001 Unit
$199.00
- Item No. Sun-8062MOQ 1 Unit
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

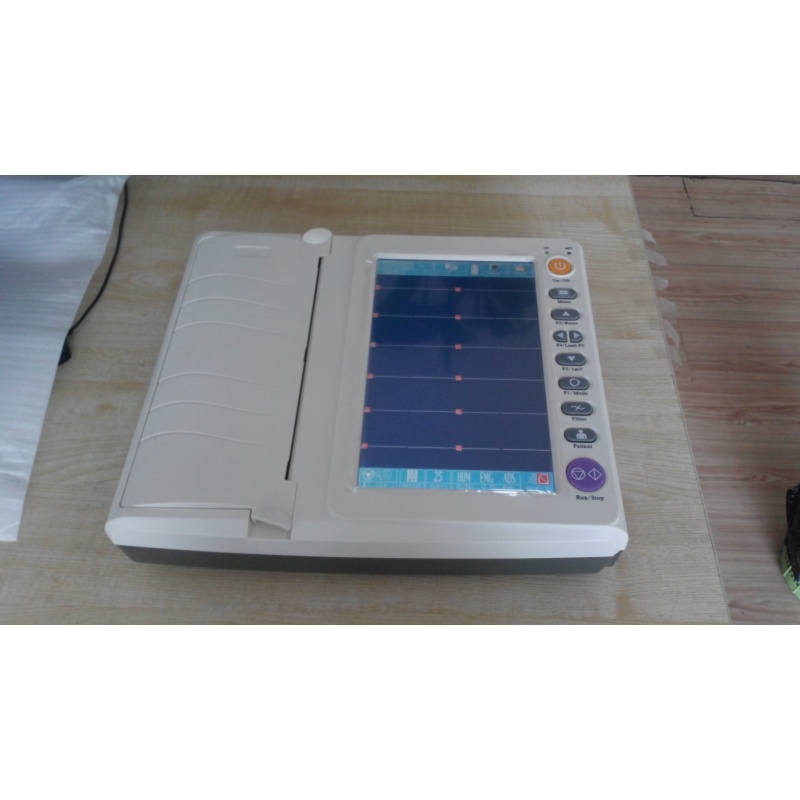

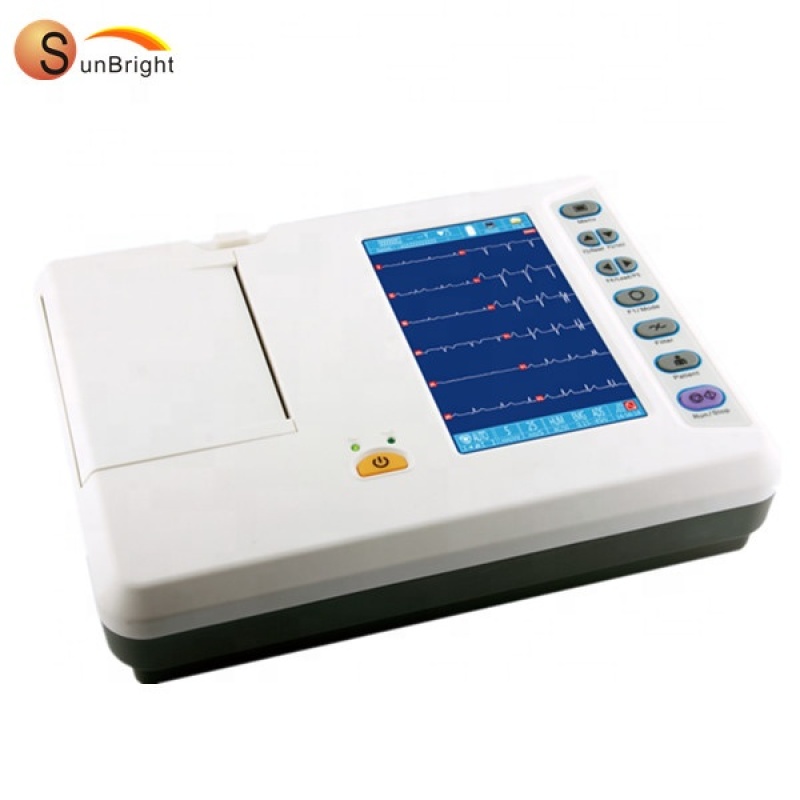

Medical ECG Machine 6 Channel ECG price
Features
● Portable 6 channel ECG machine

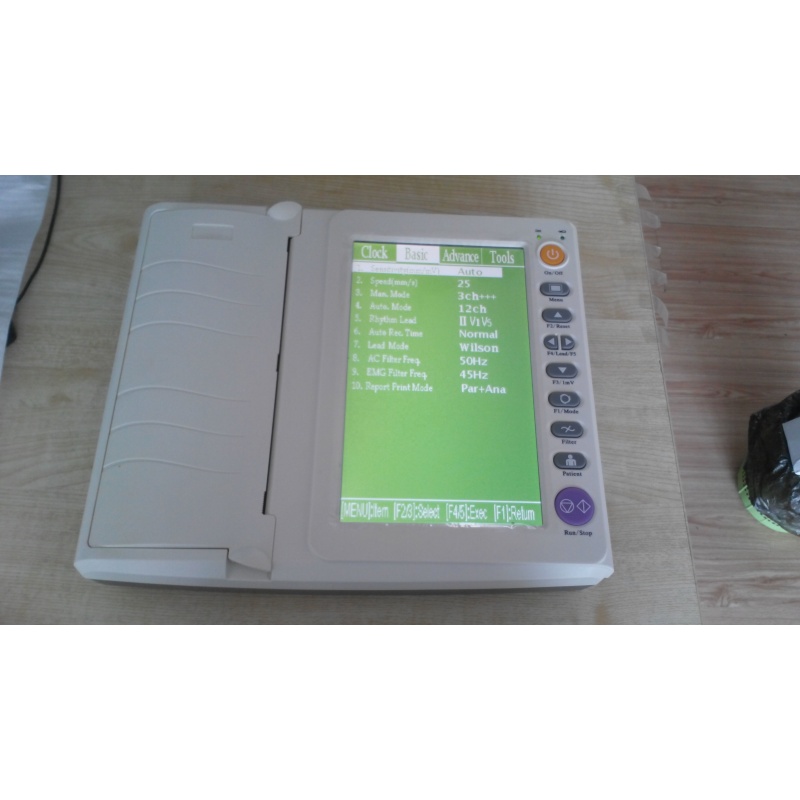

● Working modes: Manual/Auto/Arrhythmia Analysis modes
● 112mm,3/6 channel format recording
● Built in rechargeable Li-ion battery
● Adaptor 110-230V, 50/60Hz AC power supply
● Real-time ECG waveform, 16 patients save/replay

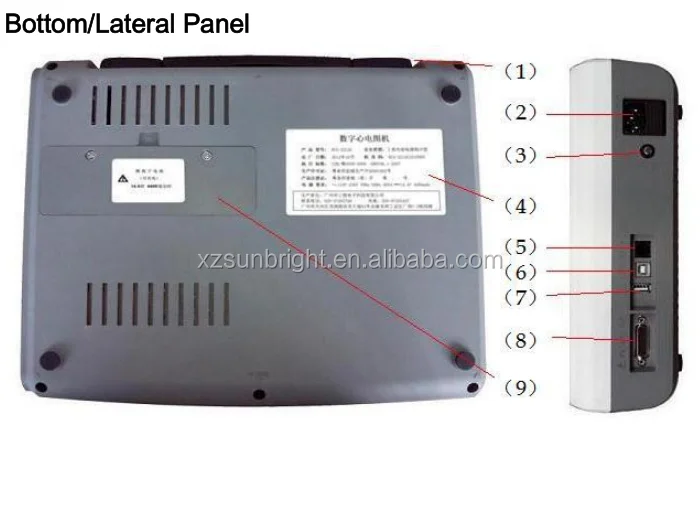

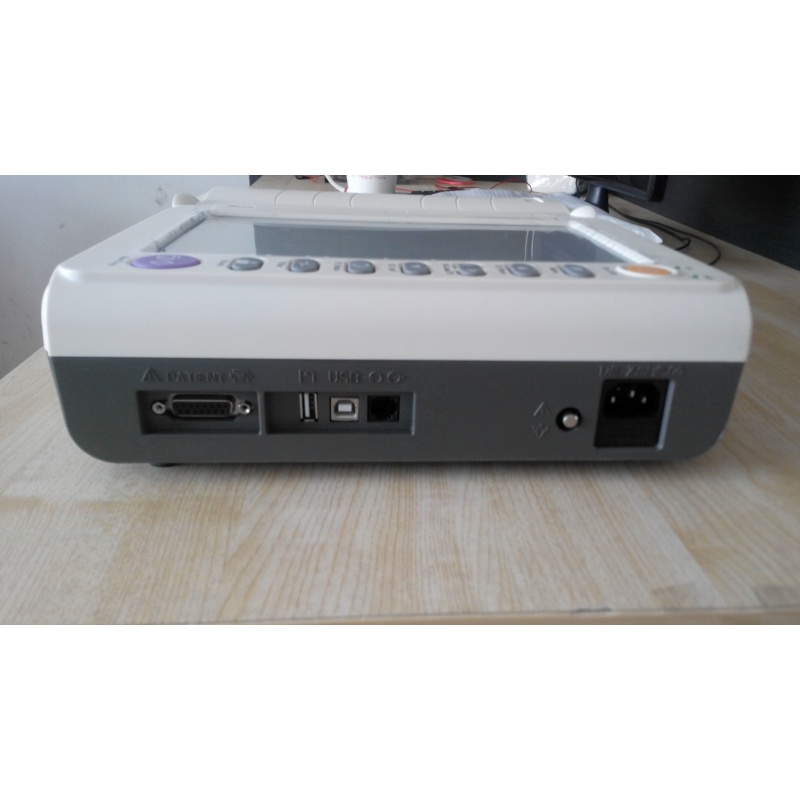

● Built in USB/RS232 interface(ECGNET software Optional)Manual/Auto/Arrhythmia Analysis Modes
Technical Specification

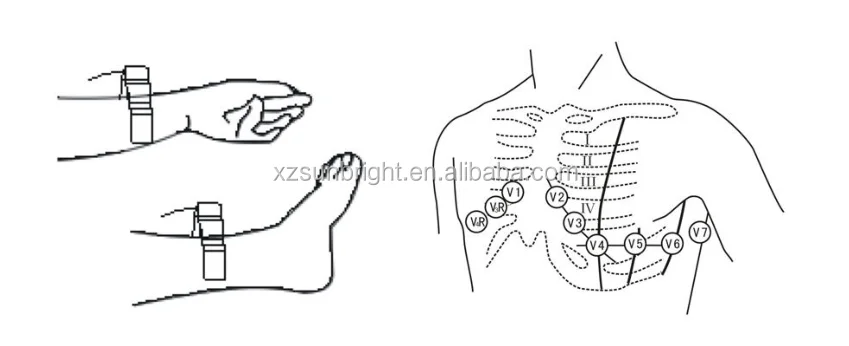

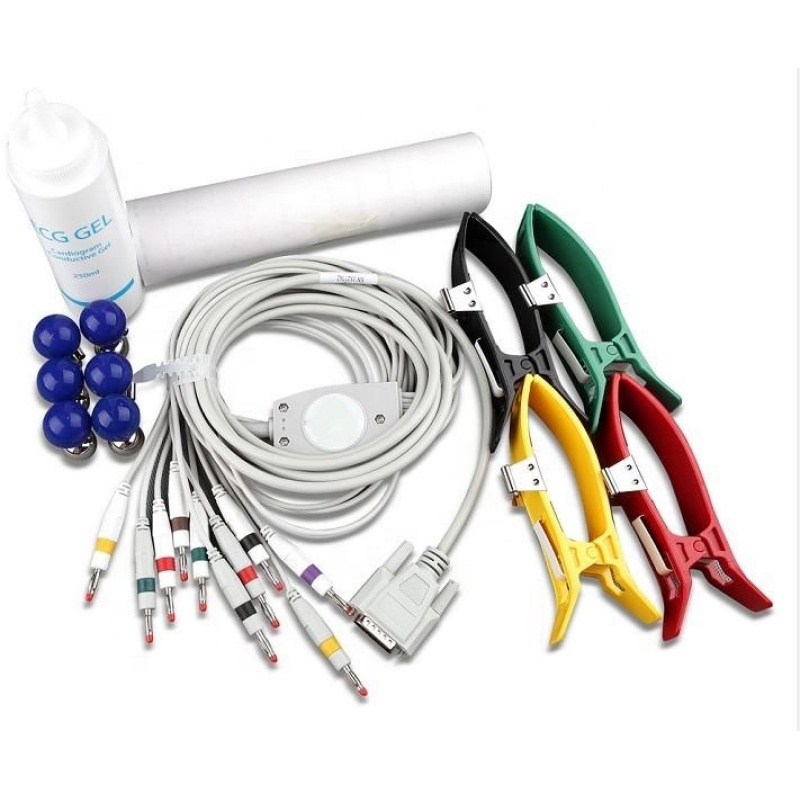

● Lead: standard 12 leads
● Input dynamic range: ±10Vpp
● Patient current leakage: <10μA
● Calibrating voltage: 1mV±2%
● Voltage tolerance: ≥±500mV
● Time constant: ≥3.2s
● Frequency response: 0.05~160Hz(-3db)
● Noise level: <15μVp-p
● Input circuit current: ≤0.05μA
● Sensitivity: 2.5, 5,10, 20mm/mV
● Inter-channel interference: ≤0.5mm
● Paper speed: 6.25,12.5, 25,50mm/s(±3%)
● Patient current leakage: <10μA
● Filter:
AC filter : 50Hz / 60Hz
EMG filter : 25Hz / 45Hz
Anti-drift filter : 0.15Hz(Adaptive)
● CMMR: ≥120dB (with AC filter)
● Sensitivity valve: ≤20μV
● Input impedance: ≥50MΩ
● Work modes: MAN,AUTO,ANALYSIS Modes
● Lead acquisition12bit/1000Hz(synchronously 12 leads)
● Input circuit: floating; protection circuit against defibrillator effect

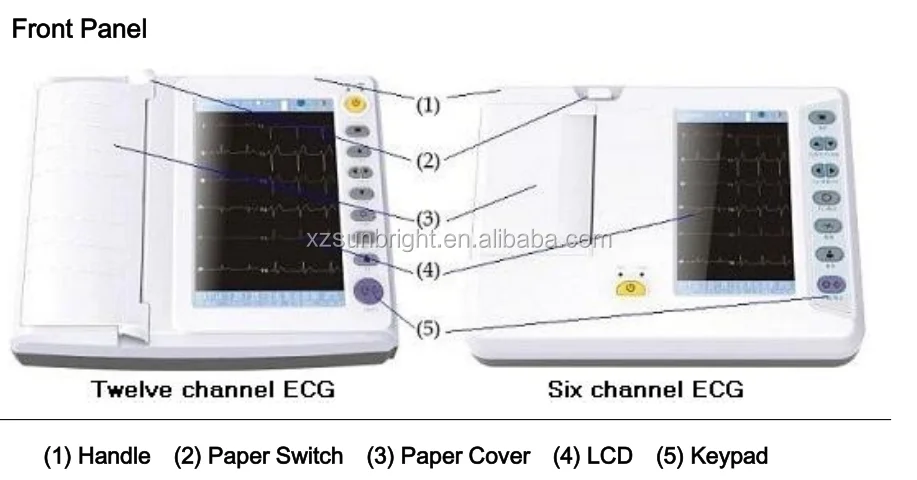

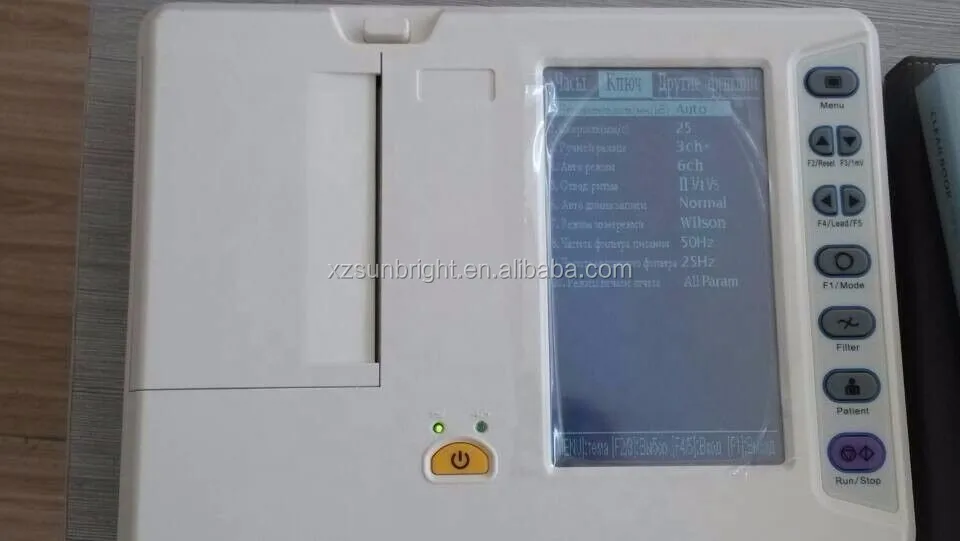

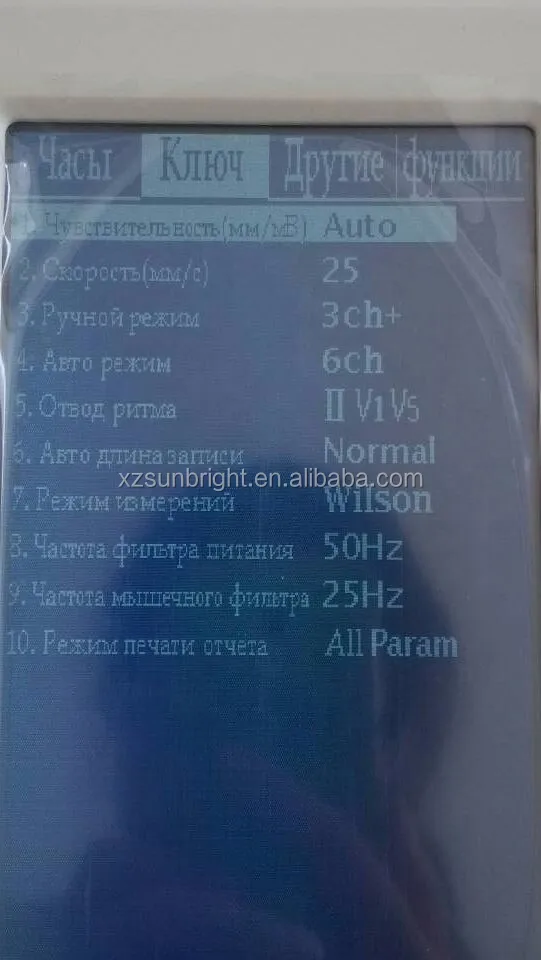

● Display: 7 inch LCD
