OB Urology Gynecology Digital Color Doppler Diagnostic ultrasonido 4d ecografo portatil ginecologico
1-1000 Unit
$4,999.00
≥ 1001 Unit
$499.00
- Item No. SUN-906BMOQ 1 Unit
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production

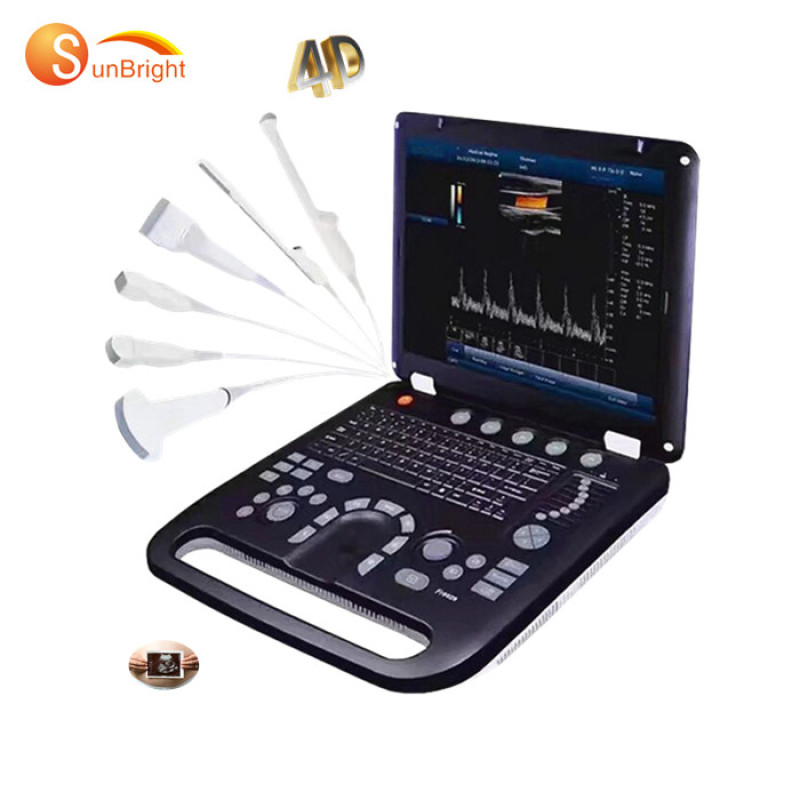

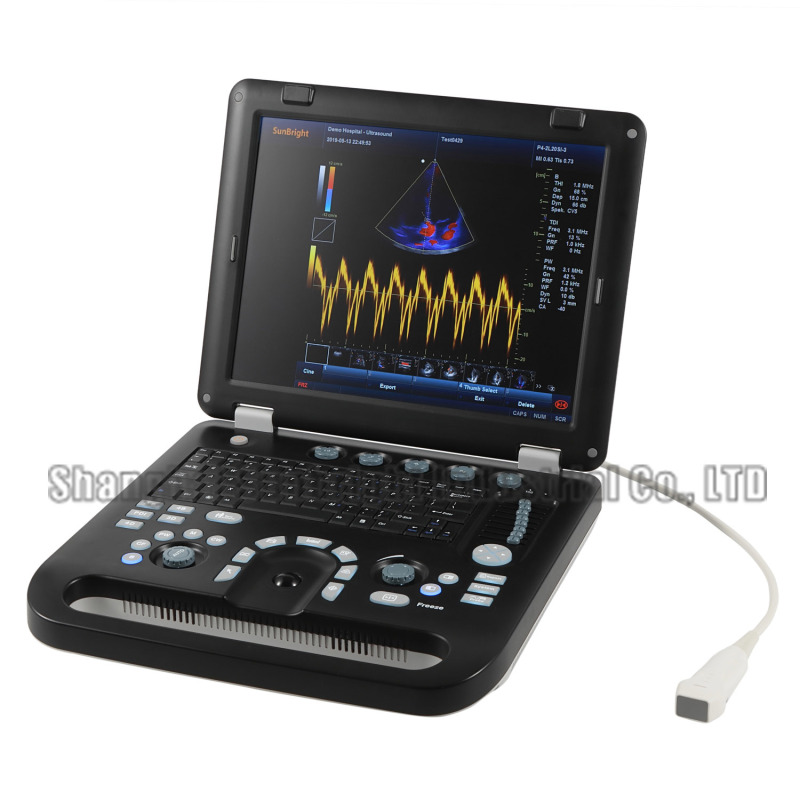

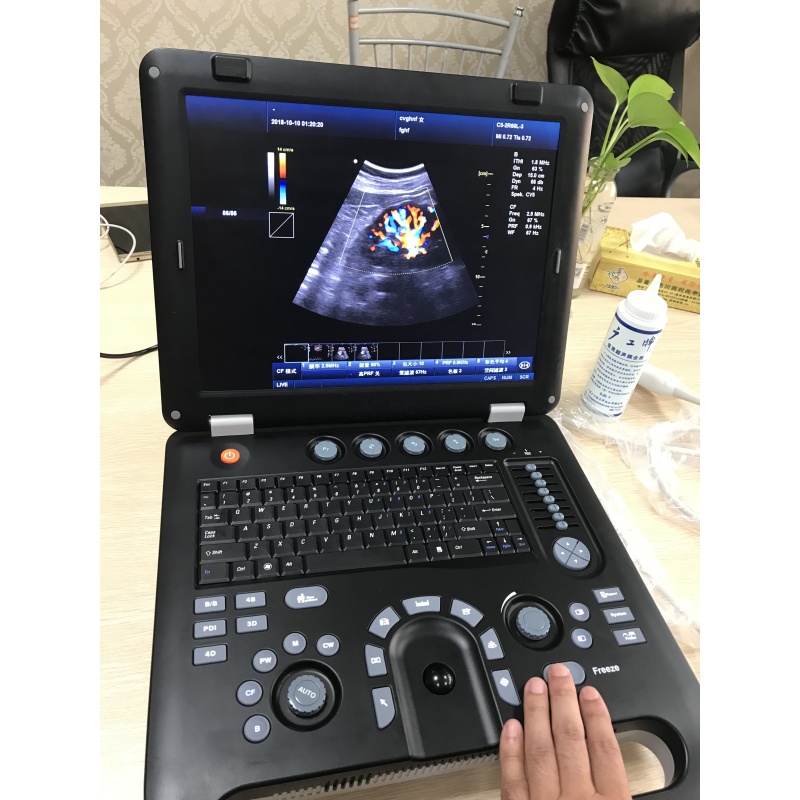

OB Urology Gynecology Digital Color Doppler Diagnostic ultrasonido 4d ecografo portatil ginecologico
1.Large 15 inch LED color display real Doppler function USB ports and VGA port and 2 probe connectors.
2. Built-in battery,which can be contentiously worked at least 3 hours when power off.
3.Main Application: Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics/Musculoskeletal and so on.
4. IMAGING MODES:B, 2B, 4B, M, B/M, B/C, B/D, B/C/D, B/CFM/D,CF+B model simultaneously,PDI Color, Dual Color,Simultaneous 2D/3D/4D Color Compound, PW, CW Duplex/Triplex, CFM, CDE, PD, Directional PD, CD . Anatomy M, Color M mode.
5. PC-based Color Doppler with Windows system, which can connect with any printers in any brands. Printed area are adjustable,which can be pictures, reports or picture+report, etc.
6. Built-in DICOM 3.0 protocol
7. Multi-languages function:English, Chinese, Spanish, and Portuguese, Russian, Arabic, French, Vietnamese, Indonesian,German,Persian, Thai and so on.
Physical Specifications
Equipment size | 375mm*360mm*75mm |
Equipment weight | 5.5kg |
Packing size | 490mm×270mm×490mm |
Packing weight | 10kg |
Connectivity/Media/Peripherals
Transducer Ports | 2 |
USB Ports | 2 |
Hard Disc | 128GB (SSD), 120G/200GB SSD (Optional) |
Printing Area | Image, report, Image+report |
Ethernet Port | 2(100Mb/1000Mb) |
External Display | VGA, HDMI,etc.. |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
General Performance: | Digital Broadband | 12288 channels |
Beam-former | Re-programmable | |
Transmit Voltage | Adjustable (15 steps) | |
Beam-former Frequency Range | 1~40 MHz |
Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion
Transducers

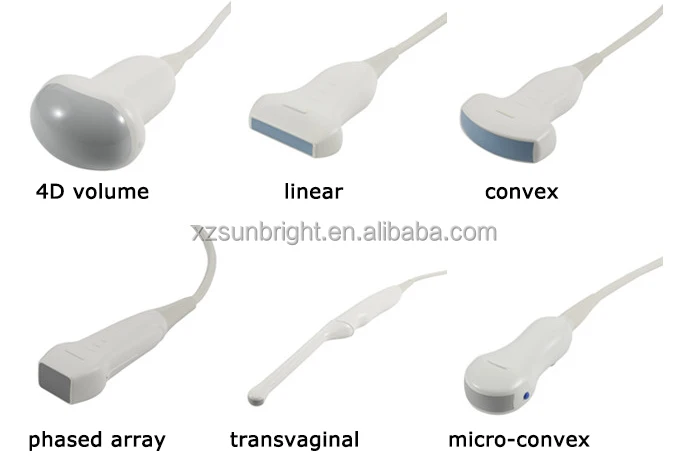

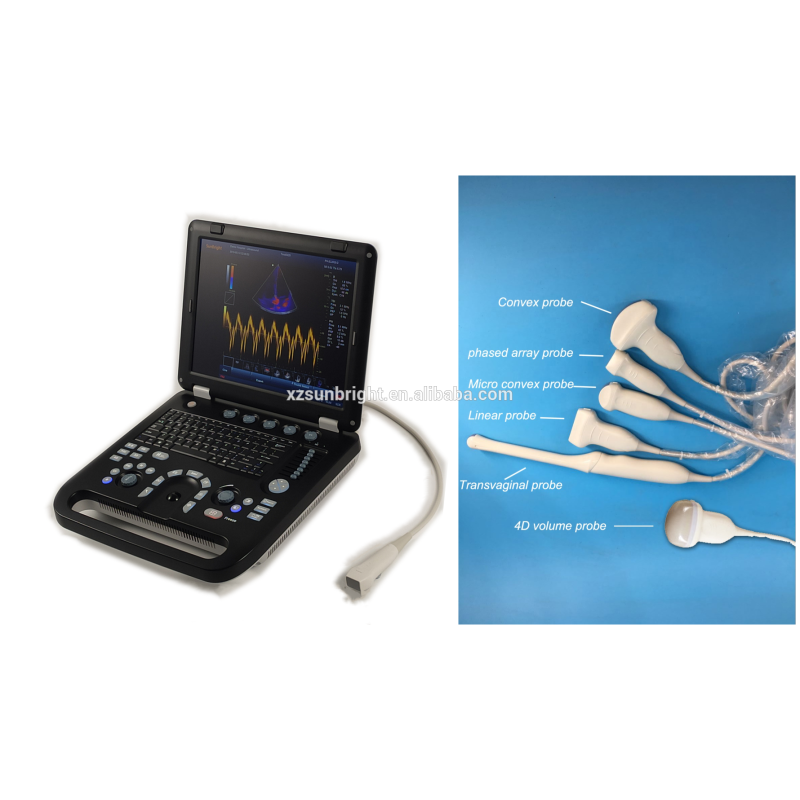

Probe | Convex Array Probe | Linear Array Probe | Intra-Cavity Probe | Micro-convex probe |
Frequency | Central 3.5 MHz (2.0MHZ to 10.0MHZ) | Central 7.5 MHz (2.0MHZ to 10.0MHZ) | Central 6.5 MHz (2.0MHZ to 10.0MHZ) | Central 4.0 MHz (2.0MHZ to 10.0MHZ) |
Pitch | 0.516mm | 0.352mm | 0.216 mm | |
Radius | 60mm | N/A | 10mm | |
Elements | 96 | 96 | 96 |
LED Monitor
Size (Diagonal) | 15" |
Contrast Ratio | 800:1 |
Resolution | 1024*768 pixels |
Brightness | 230 cd/m2 |
Color Depth | 24bit |
Rotate Angle | ± 180 |
Grey Levels | 256 |
DICOM Connectivity
DICOM3.0 Compliant
3D 4D Software
Built-in 3D 4D software
Image Storage
Storage Format: PNG, AVI, BMP, JPEG, DICOM
Export Video Format: AVI
Export Image Format: PNG, JPEG, BMP, DICOM
User Interface:
User Permission setting
Intuitive Windows-based operating principles
User-centric control panel with Home Base layout and control customization
Variable brightness indicates active state of function keys
Easily accessible, full size QWERTY keyboard for text entry, function keys and system programming
Cine Playback, Multiple Arrows, Configurable Worksheets, Exam Review, Pictograms (Body Marks),System Setup Menu
On line attention function, tell the user how to operate in the next step
906B color Doppler 3D 4D main unit+one convex probe(128 elements)+lithium battery
15"LCD with high resolution
3D/4D software
CW and PW function
Two USB ports

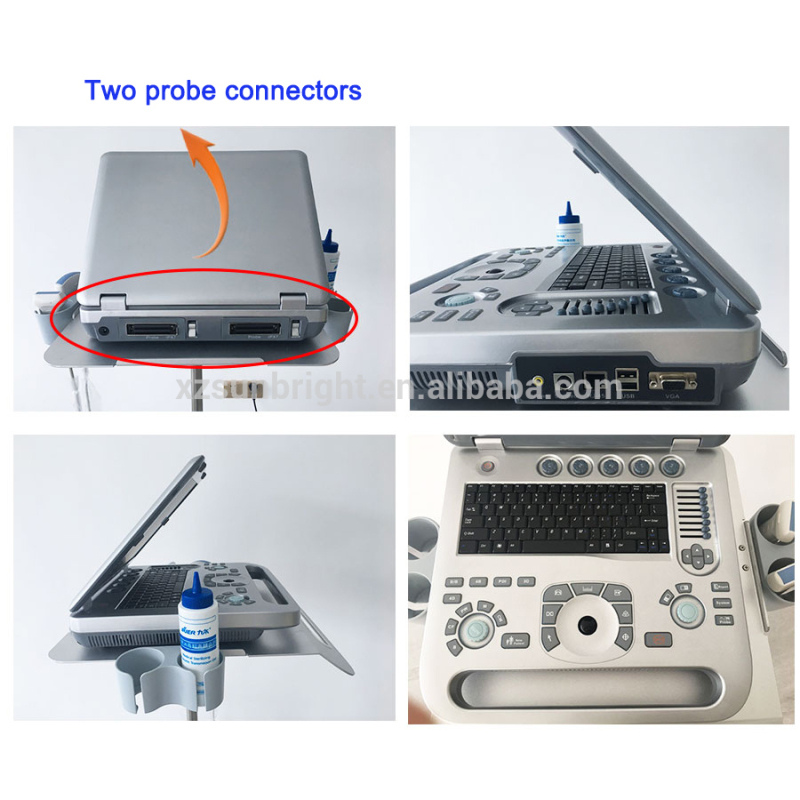

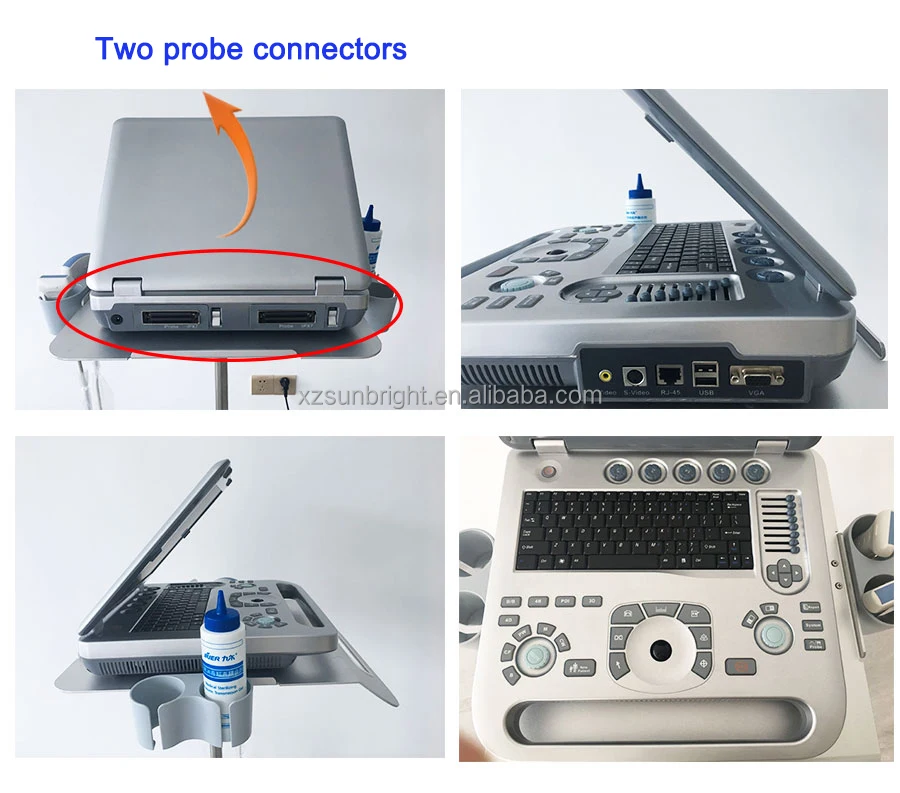

Two probe connectors
One s-video out port
One video port
One power inlet
One convex probe(3.2M R50)
One VGA video converter
Plenty of measurement & calculation software packages
24 months warranty since ex-factory date for main unit
12 months warranty since ex-factory date for probes
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
| Business Type | Manufacturer | Country / Region | Jiangsu, China |
| Main Products | B Ultrasonic Diagnostic Equipment,Color Doppler,Patient Monitor,ECG,Pulse Oximeter | Total Employees | 11 - 50 People |
| Total Annual Revenue | confidential | Year Established | 2018 |
| Certifications | Product Certifications | ||
| Patents | Trademarks | ||
| Main Markets | Africa 15% South America 10% Mid East 10% | ||
Shanghai Sunbright is located in Haiwan town, Fengxian District in Shanghai City, which is important area in Spark Development Zone. With beautiful scenery, spacious venue, advanced technology, sophisticated equipment and high-quality personnel, Shanghai Sunbright is the leader to produce refined products in the same line.
Shanghai Sunbright has several dozes of series of products which combine optical, mechanical, electrical and computer technology, including color dopplers, B ultrasounds, multi-parameter monitors, colposcopes, electrocardiograms and so on. With high quality products and services, Shanghai Sunbright got high trusts from most of customers and the attentions and supports from leaders at all levels. Currently Sunbright has become the famous and leading brand in the line, has set up more than 50 branch offices and after service offices in more than 20 provinces, municipalities and autonomous region in China, exported products to more than 50 countries in Europe, Asia, Africa, South America and North America and become the unique platform of Sunbright for sale and service.
"Excellent quality, Excellent service" is always our company's quality policy. Sunbright will play our own technology advantages to provide most of the users with the best quality products, the most favorable prices, a perfect sales network and all kinds of after-sales service and try our best to do for Human Health!
Shanghai Sunbright, worthy of your trust forever!
