Portable one-channel Syringe Pump medical infusion pump for use
1-1000 Set
$399.00
≥ 1001 Set
$100.00
- Item No. Sun-500ZMOQ 1 Set
Choice
Quantity:
If you have your own design, please contact us, there will have a professional customer service to communicate with you.
Don't have your files right now?No worries, Check out our art tips for more information.
If over 500pcs, mass production will start until pre-production sample has been approved.
Est. 7 days production
Portable one-channel Syringe Pump medical infusion pump for use

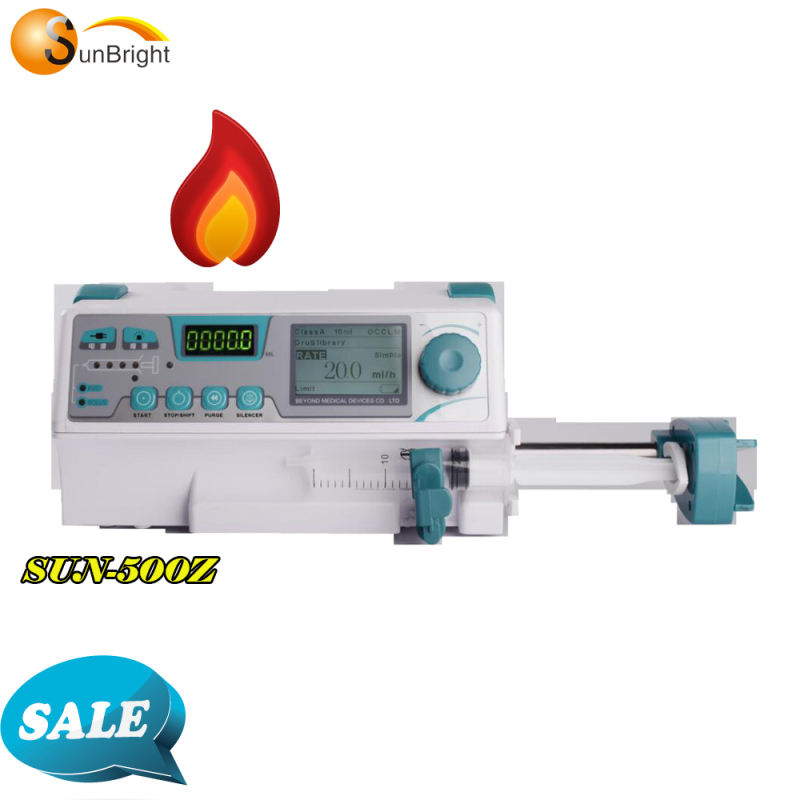

Sun-500Z Syringe Pump
Unique audible and visual alarm,safe and reliadle,gain patents.
Compatible with 10ml,20ml,30ml,50/60ml syring of any brands after correct calibration
Work- mode: Rate mode,Time Volume mode,Dosage Weight mode.
Features:
* Audible and visual alarm for Occlusion,Equipment failure,Software Exception,operation, Software Exception, Injection finish,Limited finished,Battery running out,Improperly installed,Abnormal operation etc.
* Preset Solution Volume to greatly reduce the workload of nurses.
* Three Work modes:Rate mode,Time Volume mode,Dosage Weight mode.
*One-key operation makes setup easy and simple.
*Syringe Plunger Grabble Detector,operable with one hand in a No-Germ Environment.
* Automatically record the settings of last injection; Sun-500z can store 2000pcs of injection records and it has a drug library.HD LCD Display,high capacity wors,friendly user interface,dynamically dispiay working status.
*Freely Stackble:Freely stack one onto another to provide multiple Solutions,which have a wide range of clinical applications.
* OEM is available.
Injection Rate | 50(60)ml Syring 0.1ml/h----1500ml/h(0.1ml/h step) 30ml Syring 0.1ml/h----900ml/h(0.1ml/h step) 20ml Syring 0.1ml/h----600ml/h(0.1ml/h step) 10ml Syring 0.1ml/h----300ml/h(0.1ml/h step) | ||||
Rate Accuracy | Within + 3% (after correct calibration) | ||||
Mechanical Precision | Within + 2% | ||||
Maximum Stackable | 8pcs | ||||
Purge Rate | 50(60)ml Syring: 1500ml/h 30ml Syring: 900ml/h 20ml Syring: 600ml/h 10ml Syring: 300ml/h | ||||
Bolus Rate | 50(60)ml Syring: 1200ml/h 30ml Syring: 720ml/h 20ml Syring: 480ml/h 10ml Syring: 240ml/h | ||||
Volume Limit | 0.1ml ---- 9999.9ml(0.1ml step) | ||||
Total Injection Volume | 0.1ml ---- 9999.9ml(0.1ml step) | ||||
Occlusion | High 800mmHg+ 200mmHg(106.7kPa+26.7kPa) Medium 500mmHg+ 100mmHg(66.7kPa+13.3kPa) Low 300mmHg+ 100mmHg(40.7kPa+13.3kPa) | ||||
Power Source | 100---240V 50/60Hz; Internal rechargeable Li-battery, DC 12V | ||||
KVO Speed | 0.1ml/h ---5ml/h (0.1ml/h step) | ||||
Power Consumption | 35VA | ||||
Syringe Set | Compatible with 10ml,20ml,30ml,50/60ml syring of any brands after correct calibration | ||||
Domension | 280mm(L) *210mm(W)*130mm(H) | ||||
Net Weight | 2.2KG | ||||
Package Reference | 1pc Carton, 3.2Kg: 36cm(L)*29cm(W)*18cm(H) 2pcs Carton, 6.4Kg: 40cm(L)x39cm(W)33cm(H) 3pcs Carton, 9.6Kg: 58cm(L)x39cm(W)34cm(H) | ||||
