1-99 Piece
$1,650.00
≥100 Piece
$1,500.00

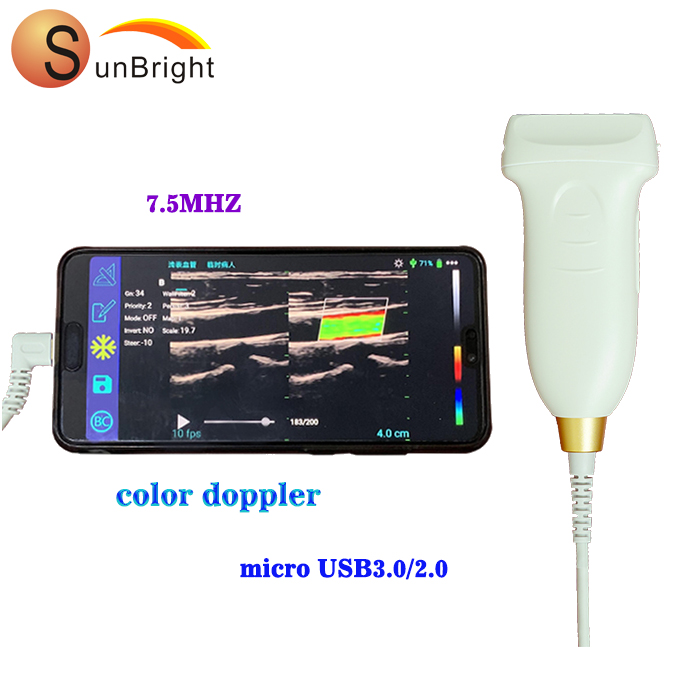

portable linear wireless wifi usb color doppler android/pc ultrasound scanner
Application
Abdomen / Obstetrics / Gynecology / Urology / Small Parts / Vascular / Pediatrics / Musculoskeletal
Electrical Power
Voltage | 5 V |
Max Power | Max Power |
Physical Specifications
Packing size | 210mm×130mm×50mm |
Packing weight | ~400g |
Cine/Image Memory
Cine Memory | 200 frame |
Capture area | Image only / full screen |
DICOM Connectivity
DICOM3.0 Storage
Image Storage
Storage Format: JPEG, MP4
Technology
Full field synthetic aperture imaging Tech |
Multi-beam formation Tech |
Speckle Reduction Tech |
Phase-inverse Harmonic Imaging Tech |
Duplex Synchronous Display |
Directional Power Doppler |
Imaging Parameters Preset |
General Performance
Digital Beamformer Channels | 64 channels |
Beam-former Frequency Range | 1~18 MHz |
Imaging Performance
Startup Time (Max) | Avg. < 10 seconds |
Preset Switching Time | Avg. < 1 second |
Storage Time (Image to Disk) | Storage Time (Image to Disk) |
Transducers
Probe | Convex Array Probe | Linear Array Probe |
Frequency | Central 3.5 MHz (2.0MHZ to 5.0MHZ) | Central 7.5 MHz (5.0MHZ to 10.0MHZ) |
Pitch | 0.78mm | 0. 5mm |
Radius | 60mm | N/A |
Elements | 80 | 80 |
User Interface
Full touch-screen-based operating principles
IMAGING MODES
B, M, 2B, B/C, B/D, B/C/D, CF+B, PW
B-Mode
Maps | 8 |
Gain | 0~100 |
TGC | 6 Sliders |
Dynamic Range | 45~80dB |
Depth | Max. 24cm |
Chroma | 0~7 |
Grayscale Levels | 256 |
Frame Rate | Max.15 Hz |
Persistence/ Frame Average | 1~4 |
Top/Bottom/Left/Right Reverse | Yes |
Speckle Reduction | Yes |
Harmonic imaging | Yes (linear probe) |
Color Mode
Gain | 0~100 |
Color Maps | 1~12 |
Doppler Steer Angles | 7 Steps |
Wall Filter | 1~4 |
Persistence/Frame Average | 1~5 |
PW Mode
Gain | -20~20 |
D Linear Velocity | L/M/H |
Doppler Steer Angles | 5 Steps |
Wall Filtering | 1~3 |
Correction Angle | 80°/-80° |
Max PRF | 10kHz |
Baseline Adjustment | -3~3 |
MEASUREMENTS SPECIFICATIONS
Analysis Packages
Basic, Obstetrics, Urology
Basic Measurement
B-mode | Distance, Perimeter and Area (ellipse or track-based method), Volume |
M-mode | Heart Rate, Time, Distance, Speed |
PW-mode | Heart Rate, Velocity, S/D, PI, RI |
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
1. OEM/ODM service : Sunbright offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty : Sunbright offers 18-24 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support: Sunbright offers professional engineers for customers on the technical support, and response within 12 hours
3. Return policy allowed
4. Shipping cost: we are VIP customer of DHL, TNT, FEDEX, UPS, EMS, can enjoy a competitive shipping cost.
5. Quick resolution for item problems by professional engineer within 8 hours.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Welcome to contact us!
