Hospital Equipment High Quality Newest Easy operating Medical veterinary iv Infusion Pumps

1-1000 Set

$399.00

≥1001 Set

$100.00

  • Item No. Sun-900
    MOQ 1 Set / Set
description
Product Description

Hospital Equipment High Quality Newest Easy operating Medical veterinary iv Infusion Pumps

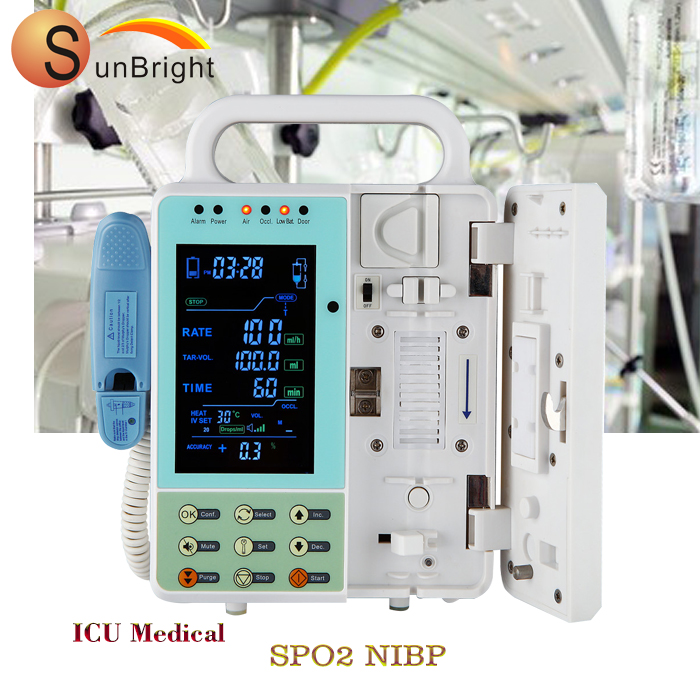

Sun-900 Infusion Pump


4.3 inch color LCD display, with backlight, suitable for working in various ambient light conditions. infusion monitoring system (Optional), the status of each pump is displayed in real time at the central station through wireless transmission.Display time, battery, infusing status, mode, rate, target volume, accumulated volume, target volume, sound volume, pressure, department, bed No., I/V set, temperature of medication


Large LCD display, with backlight, suitable for working in various ambient light conditions.

Disposable IV set of any brand is suitable for this pump

Three working modes: Rate/Volume/Time mode

Purge, KVO function

Heating function is optional, suitable for infusing in winter or there is requirement for the medication temperature.

Central monitoring system is optional, the infusing status of each pump is displayed in real time at the central station through wireless transmission.

Simple and convenient in operating, intuitive presence of working status.

Audible and Visible alarms

Alarm: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.

Size: 188 mm(L)*198 mm(W)*228 mm(H)

Net Weight: 2.2kg

Specs
Pump type
Drip type infusion pump
Pumping way
Peristalic fingers
Adjustable Drop Rate Range
1~400 drops/min (step: 1 drop/min)
Adjustable Volume Rate Range
1~1200 ml/h (when 1~99.9 ml/h, step: 0.1 ml/h; greater than 99.9 ml/h, step: 1 ml/h)
Flow Precision
Within 3% more or less(using the IV set appointed by the manufacturer or calibrated high quality IV set)
Mechanical precision
within 2% more or less
Purge Rate
800 ml/h
KVO Rate
1 ml/h (1~300 ml/h)

3 ml/h (greater than 300 ml/h)
Infusion Volume Range
1 ml~9999.9 ml (step: 0.1 ml)
Maximum Accumulated Volume
9999.9 ml (step: 0.1 ml)
Time Range
1 min~9999 min (step: 1 min)
Occlusion Alarm Threshold
High: 800 mmHg+-200 mmHg (106.7kPa+-26.7kPa)

Medium: 500 mmHg+-100 mmHg (66.7kPa+-13.3kPa)

Low: 300 mmHg+-100 mmHg (40.7kPa+-13.3kPa)
Alarm
Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.
Air Bubble Detector Method
ultrasonic wave, sensitivity: more than or equal

25 μL
Fuse
F1AL/250V ("F" indicate fast,"L" indicate low breaking capacity), 2 pcs (installed inside pump).
Power Supply
AC 85~265V, 50/60Hz;
Internal Battery
11.1V rechargeable li-ion battery. Capacity:more than or equal 2000mAh;

the pump can work more than 4 hours at the flow rate of 25 ml/h after charging for 8 hours (Medium rate specified by GB 9706.27-2005).
Power
less than or equal 40VA
Size
188 mm(L)*198 mm(W)*228 mm(H)
Weight
2.2KG
Environment Requirements
Transport

Ambient Temperature: -30°C~+55°C

Relative Humidity: 20%~95% (non-condensing)

Atmosphere Pressure: 70kPa~106kPa

Storage

Ambient Temperature: -30°C~+55°C

Relative Humidity: 20%~95%

Atmosphere Pressure: 70kPa~106kPa

Operation

Ambient Temperature: +5~+40°C

Relative Humidity: 20%~90%

Atmosphere Pressure: 86kPa~106kPas
Calibration function
disposable IV set of any brand is suitable for this pump
Three working modes
Rate/Volume/Time mode
Alarm
Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.


Packing & Delivery
